Time Server TS-2560

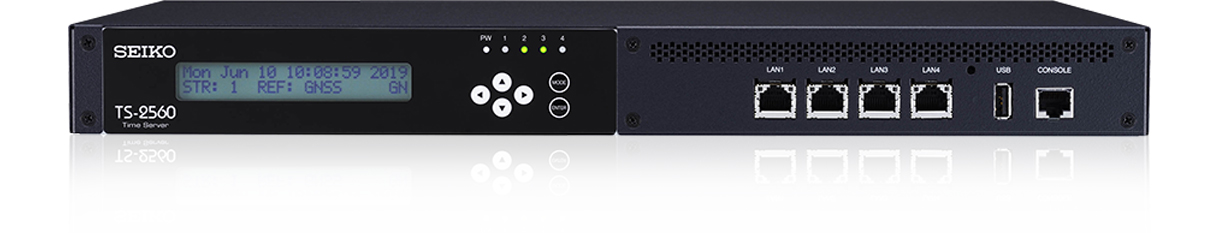

ts_2550

전원 이중화 / 외부 저장 매체 보관 등의 지원으로 대규모 시스템 운용에 최적

TS 2560 은 처리 능력 향상과 설정 정보 백업을 위한 USB 저장을 지원하며 전원 이중화와 NTP 패킷 처리 능력을 대폭 향상시킨 하이엔드 모델입니다

Features

고정밀도의 시간 동기화

GNSS 위성 시스템 확장 지원

GNSS 위성 시스템 확장 지원

  • GNSS(GPS, QZSS, Galileo, GLONASS) 위성의 장애나 방해에 의한 시스템 중단 위험을 최소화
  • GNSS 위성 수신 시 하루 오차범위1μs 고성능 수신 안테나 탑재

사용자 친화적인 조작

사용자 친화적인 조작

사용자 친화적인 조작

  • 웹브라우저의 간단한 조작으로 빠른 서버 구성 구축 완료 가능
  • 전면 화면의 빠른 설정키와 상태 표시제공
  • CLI 설정 기능 추가

완전히 독립적인 4개의 LAN 포트

USB 외부 저장 매체로 설정 정보 저장

USB 외부 저장 매체로 설정 정보 저장

  • USB 를 통한 외부 저장 매체에 설정정보를 보관 , 기기 장애 시의 원활한대응 가능

고성능 NTP 처리

전원 이중화 및 고성능 NTP 처리

전원 이중화 및 고성능 NTP 처리

  • 전원 이중화를 대응하는 새로운 하이엔드 모델
  • NTP 패킷 처리 능력 향상 , 소비 전력을 약 40% 절감
Specification
Network
Protocol UDP/IP, TCP/IP, HTTP, SNMP
LAN interface 10BASE-T / 100BASE- TX / 1000BASE-T 4 port
Processing capability 10,000 packets per second
Time information
Protocol SNTPv3, SNTPv4, NTPv2,NTPv3, NTPv4, TIME, DAYTIME
Authentication methods MD5 authentication, autokey
Built-in Oscillator type OCXO
Built-in crystal accuracy Day difference maximum ± 10 ms (+ 25 ° C)
Specifications
Rated voltage AC100~240V+/-10% (50/60Hz)
Rated current(Max) 0.32A
Power consumption 18W
Calorific value 65kJ/h
Operation temperature 0~40°C
Operation humidity 20%~80% RH (no condensation)
Installation style Rack mount
Dimensions 425.5(W)×280(D)×44(H)mm (projections not included)
Weight approx. 3.5kg
Certification VCCI-A, RoHS
Power Redundancy Yes
Time synchronization
Time source GPS, QZSS, Galileo, GLONASS
Correction accuracy ± 1 μs (during GNSS positioning)
Leap second correspondence Automatic setting / manual setting
Daylight saving time compatible Compatible
GNSS jamming protection Yes
GNSS spoofing protection Yes
Output interface
Pulse output 1PPS
GNSS receiver
Input level range 15dBi~50dBi
GNSS Antenna (Bundle, TS-210)
Temperature condition -40°C~85°C
Waterproof IP 67 (Immersion type) However, except for the connector part
Dimensions φ 66.5 × 47.5 (H) mm (excluding protrusions)
Weight Approx. 150 g
GNSS Antenna Holder (TS-211)
Dimensions 103(W)×92(D)×116(H)mm
Weight Approx. 370 g
ts-2550 제품 이미지

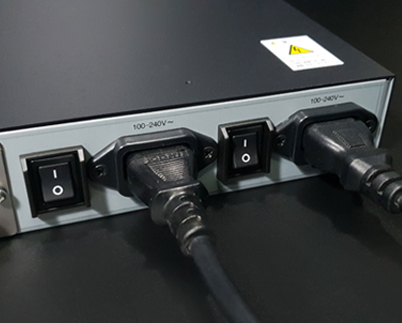

ts-2550 제품 이미지

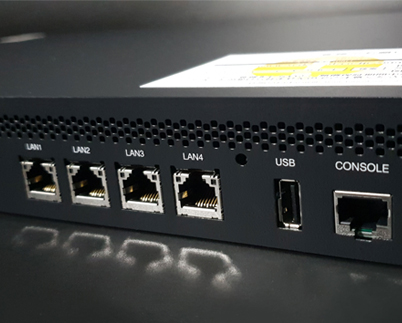

ts-2550 제품 이미지
