Taihoinst Seiko Time Solution

Features

OCXO 오실레이터 탑재

다중 GNSS 지원

PTP 3세대 프로토콜 지원

전 슬롯의 핫 스왑 기능 제공

극한 환경의 산업용 / 의료용 / 군수용 운영 가능

극한 환경의 산업용 / 의료용 /
군수용 운영 가능

듀얼 파워 지원으로 안정적인 기기 운영

전원 이중화 지원으로
안정적인 기기 운영

Specification

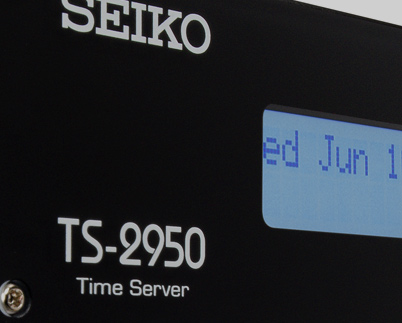

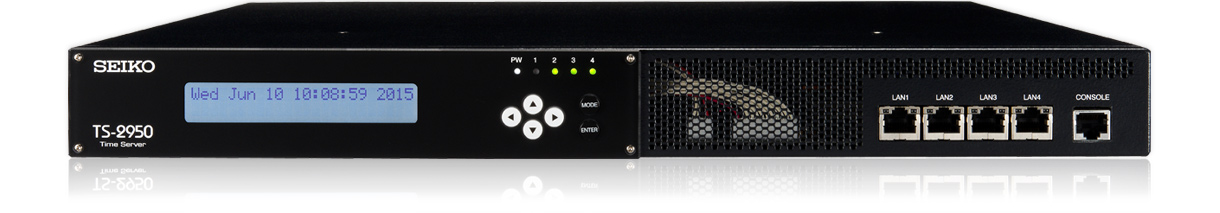

Model			TS-2950
Model			-01	-10	-11	-20	-21
Time source	GNSS	GPS,GPS, QZSS, Galileo, GLONASS
Time source	ToD(BCD)	-	-	O	O	O	O
Frequency source		-		10MHz		Black Burst, Tri-level Sync
Holdover accuracy^*1	CSAC (Cesium):	1us/1Hrs^*2	-	1us/1Hrs^*2	-	1us/1Hrs^*2	-
Holdover accuracy^*1	OCXO Type-A	-	400ns/5Hrs 1.5㎲/24Hrs	O	400ns/5Hrs 1.5㎲/24Hrs	O	400ns/5Hrs 1.5㎲/24Hrs
Leap second adjustment		Yes
Summer time		Yes
Pulse output		1PPS, 10MHz				SMPTE aligment point 1PPS, 10MHz(option)
Relay contact output		Yes

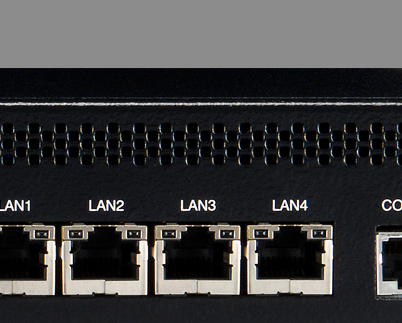

LAN interface		10BASE-T / 100BASE-TX / 1000BASE-T x 4
PTP	Number of available interface port	1
	Correction accuracy (GPS lock)	UTC within < 100ns
	Profile	Default profile(IEEE1588v2), SMPTE Profile(ST 2059-2)
	Protocol	IPv4 UDP / IPv6 UDP / Ethernet
	Delay mechanism	Delay request-response, Peer delay
	Sync. message transmission type	1 step/2 step^*3
	Processing capability (max.)	Sync : 128 packets/sec Delay_request (receive) : 16,384 packets/sec Delay_response (send) : 128 packets/sec Announce : 8 packets/sec
NTP	Number of available interface port	4^*4
	Correction accuracy (GPS lock)	±1msec
	SNTP	Yes
	Autokey authentication	Yes
	MD5 authentication	Yes
	Processing capability (max.)	14,000 packets/sec
TIME, DAYTIME		Yes
HTTP, HTTPS		Yes
Telnet, SSH		Yes
SNMP		Yes
syslog		Yes
Mail notification		Yes
IPv6		Yes
Rated voltage		AC100V~AC240V±10% (50/60Hz)^*5
Rated current		0.50A
Power consumption		45W
Calorific value		160kJ/h
Operation temperature		0 ~ 40 ℃
Operation humidity		20 ~ 80%RH (no condensation)
Installation style		Rack mount (fittings included)
Dimensions		430(W) x 500(D) x 44(H) mm (projection not included)
Weight		Approx. 10Kg
Certificates		VCCI-A, RoHS, PSE
Option		GNSS antenna, antenna holder, power unit module, fan module expansion module, Cesium oscillator
